FLOORS

Are you looking for a durable floor for your livestock trailer? We keep inventory on hand.

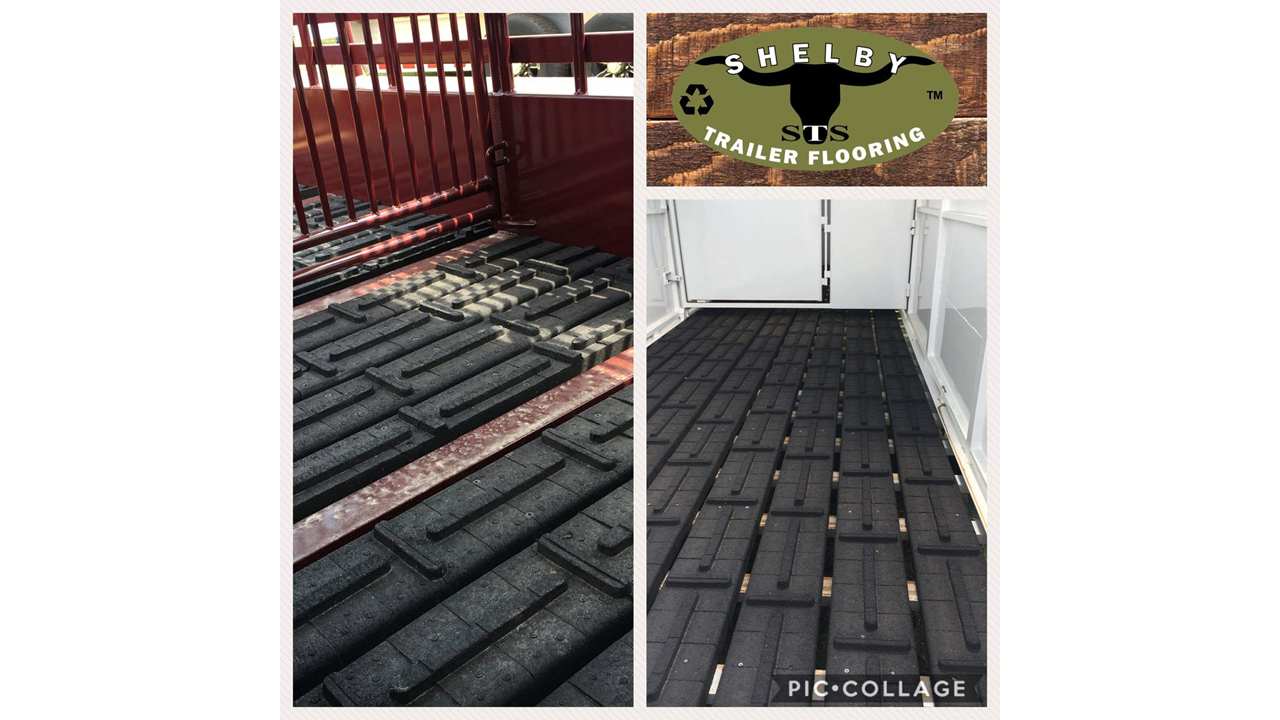

Our trailer floors have X-Lug pattern embedded that provides traction and comfort to your livestock. We also have a plank board, along with tongue and grove board for various types of trailers

Authorized Dealer for Shelby Trailer Flooring

Top-Quality Trailer Floors

Cross-Lug Boards

  • The boards can run the length of the trailer or the width of the trailer depending on preference
  • Bracing must run perpendicular to the board
  • The brace center to center distance shall not exceed 12 inches (2 x 2 x 3/16 angle is recommended for bracing)
  • Each board must be secured to the frame at least every 24 inches (trailer floor screws are preferred)
  • Allow ¼ inch space for boards less than 10 feet in length and ½ inch space for boards above 10 feet to 24 feet in length between the end of the board and trailer frame for thermal expansion

Tongue and Grove for Light Use Trailers

  • The boards can run the length of the trailer or the width of the trailer depending on preference
  • Bracing must run perpendicular to the board
  • The brace center to center distance shall not exceed 12 inches (2 x 2 x 3/16 angle is recommended for bracing)
  • Tongue and groove must be tightly engaged
  • Each board must be secured to the frame at least every 24 inches (trailer floor screws are preferred)
  • Allow ¼ inch space for boards less than 10 feet in length and ½ inch space for boards above 10 feet to 24 feet in length between the end of the board and trailer frame for thermal expansion

Plank Boards

  • The boards can run the length of the trailer or the width of the trailer depending on preference
  • Bracing must run perpendicular to the board
  • The brace center to center distance shall not exceed 9 inches
  • The boards can be installed tightly or gapped
  • Each board must be secured to the frame at least every 18 inches (trailer floor screws are preferred)
  • Allow ¼ inch space for boards less than 10 feet in length and ½ inch space for boards above 10 feet to 24 feet in length between the end of the board and trailer frame for thermal expansion

Shelby Trailer Flooring
